DIGITAL DISPLAY PROPORTIONAL VALVE DRIVERS
LE PT X STANDARD SPECIFICATIONS
Operating voltage:
9 to 36 VDC
Maximum output current:
3.00 Amps
Input Signal:
5V, 10V, 4 to 20mA
Maximum ramp time:
99.5 Sec
PWM / Dither Frequency:
40-450Hz
Linearity:
1%
Operating Temperature:
-40 to +80 Celsius
Protection Grade:
IP65
Dimensions:
78.6mm x 88.9mm x 21mm
APPLICATIONS
Mine Pit Conveyer Belt – By integrating the LE PT X into the proportional hydraulics you can smoothly operate the startup of the conveyer system to minimize aggregate spillage.
Agriculture Crop Sprayer – The LE PT X offers precise control of the arms of a crop sprayer as it lifts and lowers.
LE PT X

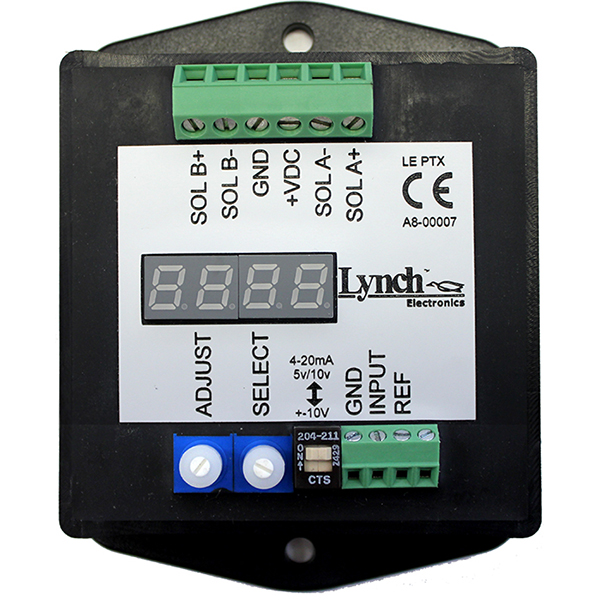

A dual driver with a digital display in a potted enclosure.
The LE PT X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC or other control system. These amplifiers allow for a smooth operation for any proportional application and can be used with any proportional valve brand including; Sun Hydraulics, Parker, Bosch Rexroth, Vickers, Denison, Yuken, Argo-Hytos, etc. The LE PT X is fire and shock resistant making it an ideal unit for rugged applications.
FEATURES AND BENEFITS
- Microcontroller design.
- Independent adjustments (Incl. ramp up & ramp down).
- 4 digit extra bright seven segment LED display.
- Large, easy-to-use adjustments and readout.
- Display and adjust actual values (Current & Voltage).
- Wide range of supply voltage.
- User selectable input type through menu setup.
- Wide ramp time range (0 to 99.5 Sec).
- Rugged design offers vibration resistance.
- Direct mounting.
- Housed in fire retardant two part epoxy resin (UL94-VO).
- Simple control with analog input, locally supplied reference voltage.
- Energy efficient PWM circuit/no heat sink required.
- Electronic limiting circuit/short circuit proof.
- Reverse polarity, command Input protection.
- Load can be connected & disconnected live.
- Current sensing maintains output regardless of changes in supply voltage and coil resistance.
- Easy troubleshooting/cable length not an issue.
Set-up Video
This product has been designed and tested to meet specific standards outlined in the European Electromagnetic Compatibility Directive (EMC) 2004/108/EC
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
