DIGITAL DISPLAY PROPORTIONAL VALVE DRIVERS
LE PD XW STANDARD SPECIFICATIONS
Operating voltage:
9 to 36 VDC
Maximum output current:
3.00 Amps
Input Signal:
5V, 10V, 4 to 20mA
Maximum ramp time:
99.5 Sec
PWM / Dither Frequency:
40-450Hz
Linearity:
1%
Operating Temperature:
-40 to +80 Celsius
Dimensions:
68 mm x 82 mm x 16 mm
*To purchase the previous version of this product or if purchasing more than 10 units, please contact sales@lynch.ca
Looking for the LE PD X? Click here
APPLICATIONS
Hydraulic Press – Using four LE PD XW drivers on four cylinders, operators can perfectly control the down force of the press.
Snow Plow – The LE PD XW can assist in smoothly controlling the lift, extending or retracting of the plow of any hydraulically driven snow plow vehicle.
Effective September 1, 2026, the mounting plate dimensions for select Lynch Fluid Controls Digital Display Proportional Valve Drivers will be updated. Product performance and functionality remain unchanged.
Affected products: LE PS X, LE PS X W-68, LE PD X, and LE PD X W-68. These products will become obsolete and no longer be available for purchase as of the effective date.
Please transition to the replacement LE PS XW and LE PD XW models, which incorporate the new mounting plate dimensions.
Affected products: LE PS X, LE PS X W-68, LE PD X, and LE PD X W-68. These products will become obsolete and no longer be available for purchase as of the effective date.
Please transition to the replacement LE PS XW and LE PD XW models, which incorporate the new mounting plate dimensions.

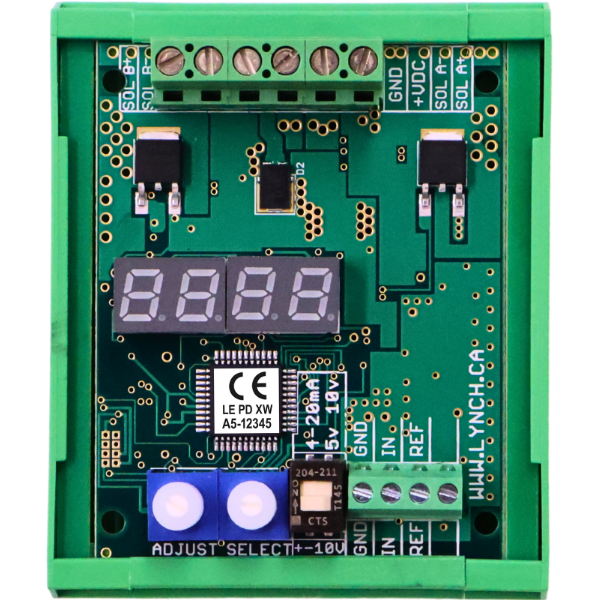

LE PD XW
Dual proportional amplifier mounted in a DIN rail housing.
The LE PD XW supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC or other control system. The dual driver is used with bi-directional valves either Coil A or Coil B activated. Mountable on a DIN Rail typically placed in an Electrical Cabinet and fits all DIN mounting standards.
This product is a direct successor for LE PD X.
FEATURES AND BENEFITS
- Microcontroller design.
- Independent adjustments (Incl. ramp up and ramp down).
- 4 digit extra bright seven segment LED display.
- Large, easy-to-use adjustments and readout.
- Display and adjust actual values (current & voltage).
- Wide range of supply voltage.
- User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA, -10 to +10V).
- Wide ramp time range (0 to 99.5 sec).
- Simple control with analog input, locally supplied reference voltage.
- Energy efficient PWM circuit, no heat sink required.
- Electronic limiting circuit/ short circuit proof.
- Reverse polarity, command input protection.
- Load can be connected and disconnected live.
- Easy troubleshooting.
Set-up Video
This product has been designed and tested to meet specific standards outlined in the European Electromagnetic Compatibility Directive (EMC) 2004/108/EC
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
