LYNCH BAR MANIFOLDS & ACCESSORIES
Vavle adapter
STANDARD SPECIFICATIONS
Standard Materials:
Aluminum-6061T6 and Ductile-654512
Other Material Options:
Mild Steel or Stainless Steel
Maximum Pressure:
Alu 3,000 PSI, Duc 5,000 PSI
Special Finishes:
Black Oxide, Electroless Nickel Plating, Anodizing
Mounting:
UNC or Metric mounting kits with Viton® O-Rings and locating pins are provided

APPLICATIONS

Testing Station
Test Stands - When a Bar Manifold can be used, but one or several of the stations required lower flow, a valve adapter is the more economical solution to use more adequate valves matching each flow requirement.
Yellow tractor
Refurbishing Equipment - Obsolete valves can be updated to more modern replacements even if the mounting pattern doesn’t match just by using one of our many valve adapters.

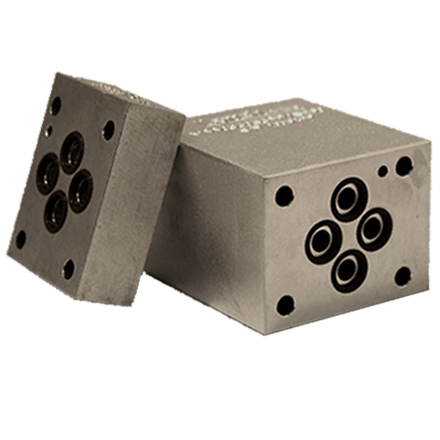

VALVE ADAPTER

Valve Adapters are designed to provide a means to mount different valve types to existing manifold interfaces. Sometimes referred to as "transition plates" or "blocks", Valve Adapters fit between valves and subplates, or manifolds, and allow a customer to mount different size valves on the same manifold, or to replace one size valve on a manifold or subplate with a different size valve. Dual tank ports are standard for all D05 valve interfaces to take advantage of higher performance limits of the manifold interface, thus reducing backpressure on the valve and achieving maximum valve performance. All mounting holes are provided, and all clearance holes to manifold interface are provided for all valve adapters to ensure structural integrity.

FEATURES AND BENEFITS

  • D05(H or HE) to D03 Valve Adapters with A and B oriented are supplied with A & B Gauge Parts as standard. Gauge Ports are optionally available on other valve adapters.
  • All clearance holes to manifold interface are provided for all valve adapters to ensure structural integrity.
  • All D05H and D05HE Solenoid Interfaces are designed with both tank ports connected to the tank port of the mating manifold interface to ensure maximum valve performance.
  • External Pilot Port Valve Adapters for interface X & Y ports are available.
  • "L" Port Valve Adapters are available.
  • Gasket Mount Pressure or Flow Controls to Current ISO Interface Valve Adapters are available.
  • Obsolete to Current ISO Interface Valve Adapters are available.
  • Servo Valve Adapters are available.

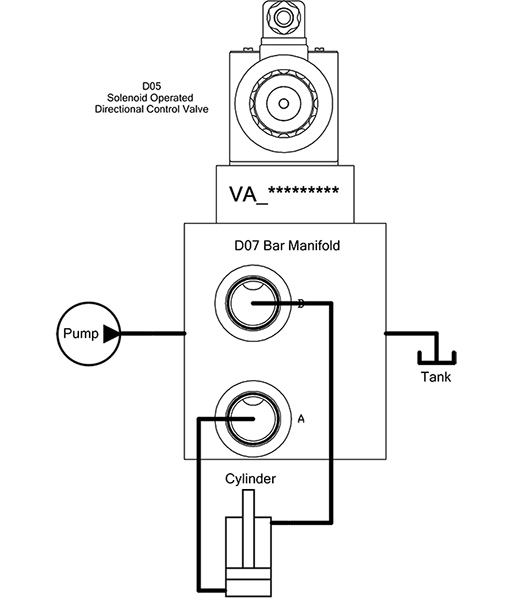

BLOCK DIAGRAM

Valve Adapter block diagram

BUILD A VALVE ADAPTER

Type:
Type
Unselected
--
Unselected
--
Valve Adapter
VA
Material
Material:
Unselected
-
Unselected
-
Aluminum
A
Ductile Iron
D
Manifold Interface (Bottom)
Manifold Interface (Bottom):
Unselected
---
Unselected
---
D02 - ISO 4401-02-01 / NFPA T3.5.1
02G
D03 - ISO 4401-03-02 / NFPA T3.5.1
03G
D05 - ISO 4401-05-04 / NFPA T3.5.1
05G
Matches Both NFPA T3.5.1-D05 Alt A & Alt B
05D
D05 Alt B - (USA Standard) NFPA T3.5.1
05H
D05 Alt A - ISO 4401-05-05 (EURO) / NFPA T3.5.1
05E
D07 - ISO 4401-07-06 / NFPA T3.5.1
07G
D08 - ISO 4401-08-07 / NFPA T3.5.1
08G
D10 - ISO 4401-10-08 / NFPA T3.5.1
10G
Solenoid Interface (Top)
Solenoid Interface (Top):
Unselected
---
Unselected
---
D02 - ISO 4401-02-01 / NFPA T3.5.1
02G
D03 - ISO 4401-03-02 / NFPA T3.5.1
03G
D05 - ISO 4401-05-04 / NFPA T3.5.1
05G
D05 Alt B - (USA Standard) NFPA T3.5.1
05H
D05 Alt A - ISO 4401-05-05 (EURO) / NFPA T3.5.1
05E
D07 - ISO 4401-07-06 / NFPA T3.5.1
07G
D08 - ISO 4401-08-07 / NFPA T3.5.1
08G
Port Orientation
Port Orientation:
Unselected
--
Unselected
--
A & B Oriented
AB
A & B Reversed
BA
Mounting Holes & Kit
Mounting Holes & Kit
Unselected
-
Unselected
-
UNC Std for SAE & NPT
U
Metric Std for SAE & NPT
M
Optional Port
Optional Port:
Unselected
-
Unselected
-
No Optional Port
Pilot Ports

External pilot & drain port connections
E
External drain "L" port connection
L
Gauge Ports

Tapping on "A" & "B" Ports
T
Port Code
Port Code:
Unselected
--
Type
Size
Code
Unselected
-
--
No Optional Port
-
None
-
AA
SAE
4
SB
SAE
6
SC
NPTF
1/4"
NB
BSPP
1/4"
BB
BSPT
1/4"
TB
Metric
M10
MB
Welcome to the Part Number Generator
The part number you have selected is only available by special order. Please contact your Lynch representative for more details.
The part number you have selected is not a standard configuration. Please contact your Lynch representative for more details.
